Navigating the EZ-Runner Screen

Overview of how to generally use the EZ Runner screen

The EZ Runner screen is located on the left-hand side of EZ Suite. It will be your source for information on incoming, outgoing, or already shipped orders that are being delivered by an EZ Runner supported trading group.


Selecting the Correct Yard and the Correct Search

1. When you first select EZ Runner it may seem as though your screen is completely empty. If this happens you will want to make sure you check for a dropdown in the top left to select your yard.

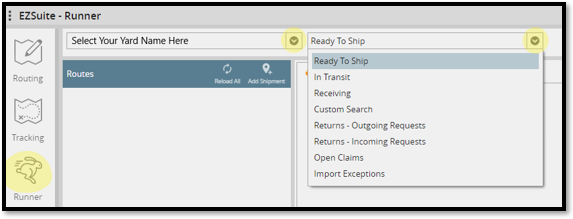

10. Runner Navigating correct yard and search
2. To the right of the drop down for your yard there is a dropdown to select a few different Search screens.

3. Depending on which of the Searches you choose your screen will display data relating to that Search. We separate most of this information into three main Searches.

Ready To Ship – Orders that have been sent to an EZ Runner ship via will congregate in this Search. You will be able to select the outgoing Route and see all the parts that need tags made so they can be scanned onto their truck.

In Transit – This Search will show all orders that have been scanned as loaded from your facility but are not yet at their destination.

Receiving – The Receiving Search shows all orders that have been created on EZ Runner with you as their destination, but the order has not yet gotten to you.

Additional Searches

1. In the Search bar there are additional options you can select that each display specific orders.

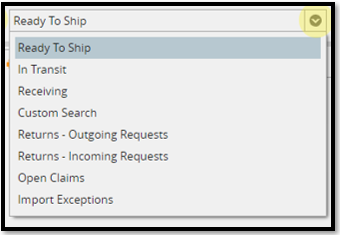

19. Runner additional searchers
Custom Search – This Search will take you to a screen where you can quickly search across many groupings for a shipment or type of shipment.

Returns – Outgoing Requests – Shows all accepted and pending outgoing return requests.

Returns – Incoming Requests – Shows all requests awaiting your approval.

Open Claims – Orders that have a claim pending.

Import Exceptions – Any order that had a problem with importing and needs adjusted.



Overview of the Runner Screen

1. In the Runner Screen you will first need to make sure you have selected your yard and the correct Search from the two drop downs in the upper left.

2. EZ Runner generally displays information in similar sections depending on which Search is selected. When in the Ready To Ship search you will find a Routes box in the upper left.

11. Runner overview Routes box
The Routes box will display ship vias that will be delivered by an EZ Runner supported network.

Reload All in the Routes bar will refresh the data displayed.

Add Shipment in the Routes bar will allow you to manually add an order to the selected route.

3. The left side of the screen will also feature a box that will display all the orders for the selected Search. Depending on the Search you select this box will reflect the name of that Search. Each of these boxes have options that you can select for additional adjustments.

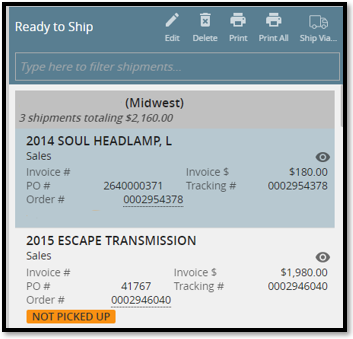

12. Runner overview Ready to ship box

In the top right of the Ready To Ship bar you will have a few options

Edit – Appears when you select an order and allows you to edit that information.

Delete – Appears when you select an order and allows you to remove the order from your manifest.

Print – Prints the Label for the selected order.

Print All – Prints Labels for all orders in a selected Route.

Ship Via - Allows you to display orders from specific ship vias.

On the order itself you will see some quick information. If you use EZ QC you can also click on the Order # and see all of the information regarding that order.

You can also click on the “Eye” icon to remove this order from your view. This will take the part off any view, and it will stay hidden unless it is scanned again at some point.

In other Searches you will see the names of the box displaying orders change. A few of those are shown below, each has a few options available specific to the selected search.

13. Runner overview In transit box

14. Runner overview incoming Freightbox
Reload All – Refreshes the data on the page.

Report – Runs a delivery report for Incoming Freight EZ Runner shipments for the selected date.

4. In the center of the Runner screen you will see information displayed for a selected order. The Label is displayed by default, some other information and actions can be selected from the tab across the top of the middle box.

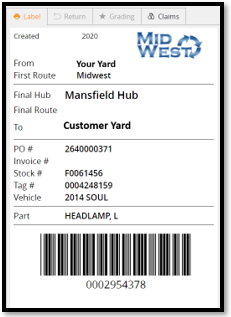

15. Runner overview label
Label – Shows the label for the selected order.

Return – Allows you to create a Return Request for an order that has been received by your facility.

Grading – Allows you to add a Grade to a part, or view a Grade already added to a part.

Claims – Allows you to file a Claim for a part that was properly packaged but damaged in transit.

5. The right side of the Runner screen will be the Shipment History box where you can go into even more detail for the order you have selected.
15. Runner overview shipment history box

17. Runner overview shipment history box cont

Stops – Lists the expected flow of a part through its delivery network. This will display Expected Arrival times and Updated Expected Arrivals. You can click on the stop number that relates to your yard. You can then manually Mark A Shipment as Loaded/Received , Edit Stop Status, or Add Note.

History – Shows added notes and photos to be kept with the part tracking information.

Scan Details – Timestamps every scan that occurs, and what each scan was for.
