Using the EZ Quality Mobile Application

Downloading and using the EZ Quality application for Order Manager

Login
To login to EZ-Quality you will need to have an account created with an email and password. The account can be created/accessed/adjusted by an admin.

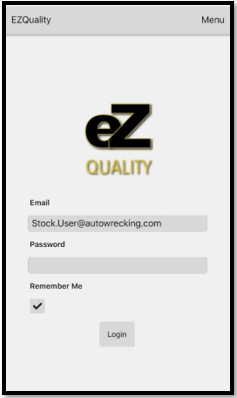

15. QC App Login

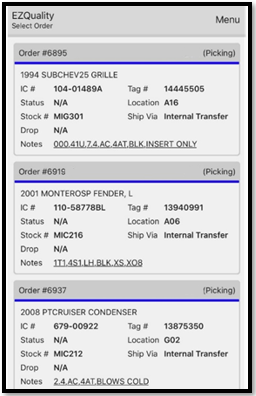

Once logged in, you will be able to see all orders that are available for you to process. 16. QC App Orders
Once an order is selected, you can view so quick information including Work Order notes and a copy of the order.

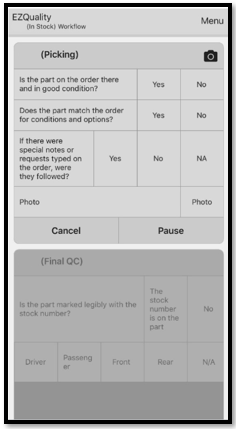

17 QC App Processing
1. Once an order is selected you will answer processing questions.
• Each answer is maintained in the record of the part.
• Some answers have actions associated with them such

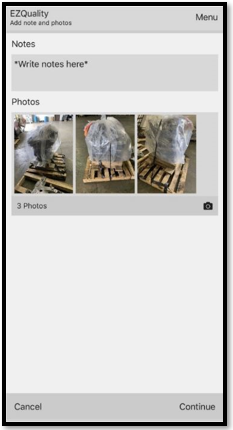

18. QC App Notes and Photos
2. When you are prompted to add notes and photos, you can write in the note box and then add as many photos as you need.

3. Additionally, you can add notes and photos at any time by selecting the camera icon in the upper right of the questions window

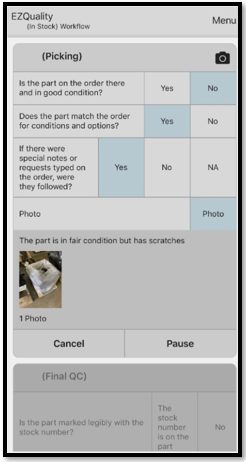

20. QC App process to Pause

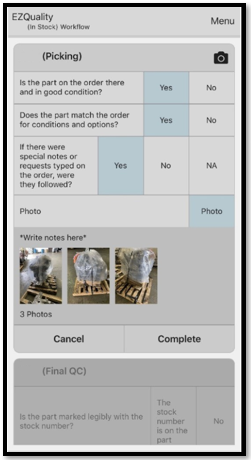

19. QC App process to complete

4. Once you have answered the processing questions you have two options. One will be Cancel, and the other will be to Complete or Pause.

• If the questions are answered and no actionable answers were found, you will see Complete which submits this job and moves the part to the next job in the workflow.

• If there is a question that is answered with an actionable response you will see Pause.

• When you select Pause, there is a notification screen that will ask you to provide notes and photos. Once you have added the notes and photos and submitted them, the order will moved to a Stalled status in Order Manager and will stay there until someone approves/denies that part.

21. QC App approve-Deny

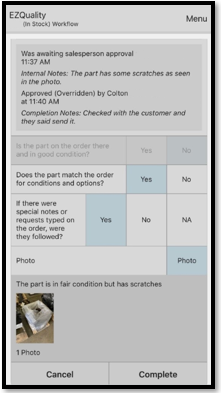

22. QC App Approved with reasoning

5. The person making the decision to approve or deny the order will be able to view the answers submitted to all the processing questions. They will also see any added notes from the part puller about why the order was being Paused. They can then choose from these responses.

Request Customer Approval - Forwards this request to the customer for them to make the call. This is not available in all circumstances.

Deny - Stops the processing of the part. The order does not reappear on the tablet of the part puller. In the case where a part is going to be alternated you will want to deny the request and then alternate the part.

Approve - Returns the order to the tablet of the part puller so they can Complete their processing. Includes notes from the approval.

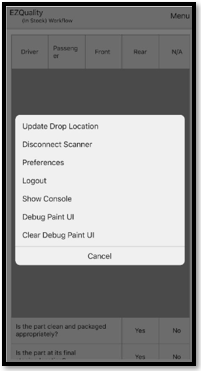

23. QC App Menu
6. In the upper right of the app there is a menu. The main three options are:

Update Drop Location - Updates the drop location listed on the part in Order Manager. This impacts how the order appears in filters and should only be used when needed. Check with an Admin before ever updating a drop location.

Disconnect - Scanner This will disconnect the scanner from EZ-Quality and will allow the scanner to connect to a different application or different device.

Logout - Logs the user out. Returns you to the home screen to log back in.
